| Brand Name: | Mstar |
| Model Number: | LXC-1738-140-NF |
| MOQ: | 1 |
| Price: | 32 |
| Packaging Details: | 25*20*10cm Piece/Pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

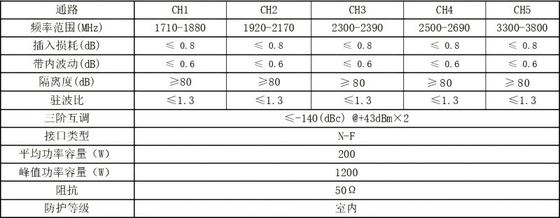

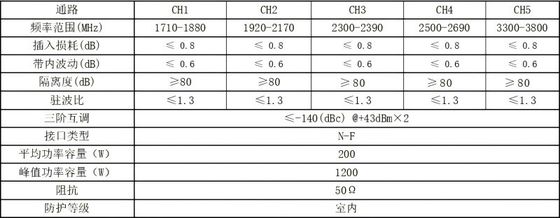

| 通路 | CH1 | CH2 | CH3 | CH4 | CH5 |
| 频率范围(MHz) | 1710-1880 | 1920-2170 | 2300-2390 | 2500-2690 | 3300-3800 |
| 插入损耗(dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 |
| 带内波动(dB) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| 隔离度(dB) | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 |
| 驻波比 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 |
| 三阶互调 | ≤-140(dBc) @+43dBmX2 | ||||
| 接口类型 | N-F | ||||
| 平均功率容量(W) | 200 | ||||
| 峰值功率容量(W) | 1200 | ||||
| 阻抗 | 509 | ||||
| 防护等级 | 室内 | ||||
|
|
