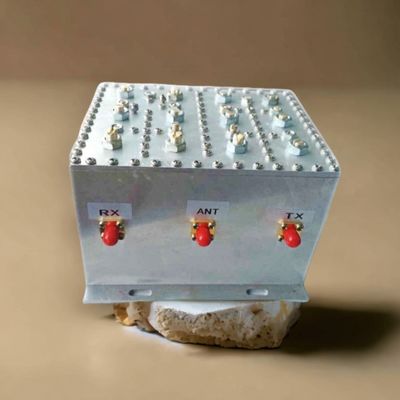

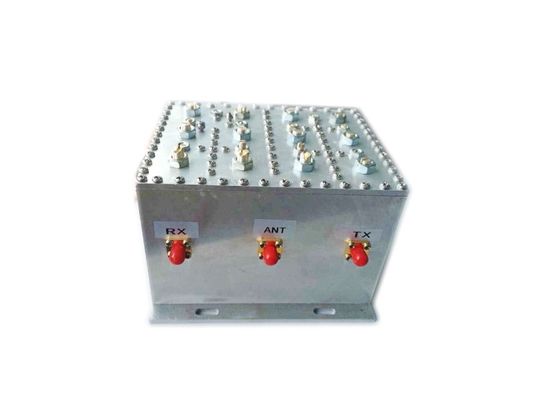

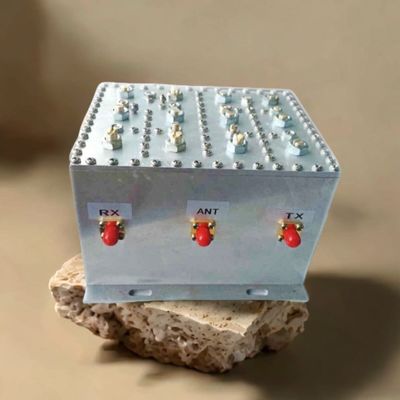

100W Cavity Broadband 400M Duplexer With Insertion Loss Of 1.5 Fluctuation Of 0.9 And VSWR Of 1.25 From Manufacturer

Brand Name:	mstar
Model Number:	YFSGQ-05007
MOQ:	1
Price:	265
Packaging Details:	252010cm Piece/Pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Supply Ability:

100 Piece/Pieces 7days

Highlight:

400M cavity broadband duplexer

100W cavity broadband duplexer

1.5 cavity broadband duplexer

Product Description

Widely used in: signal propagation of GSM, CDMA, PCS, DCS, PHS, 3G, 4G.

规格说明:

Model:YFSGQ-05007

上行Up

下行Down

工作频率

Frequency(MHz)

403.5-408.5

413.5-418.5

插入损耗

Insertion loss(dB)

≤1.5

带内波动

In-band ripple(dB)

0.9

驻波比

standing-wave ratio,SWR

≤1.25

端口隔离度

Out-band restrain(dB)

F1=403.5；F2=408.5

F1-5MHz:≥30；F2+5MHz:≥75

F1=413.5；F2=418.5

F1-5MHz:≥30；F2+5MHz:≥75

最大输入功率

Power(W)

200

接头类型

Connector

按要求 As Customers Request

工作温度

working temperature (℃)

-30～+60
